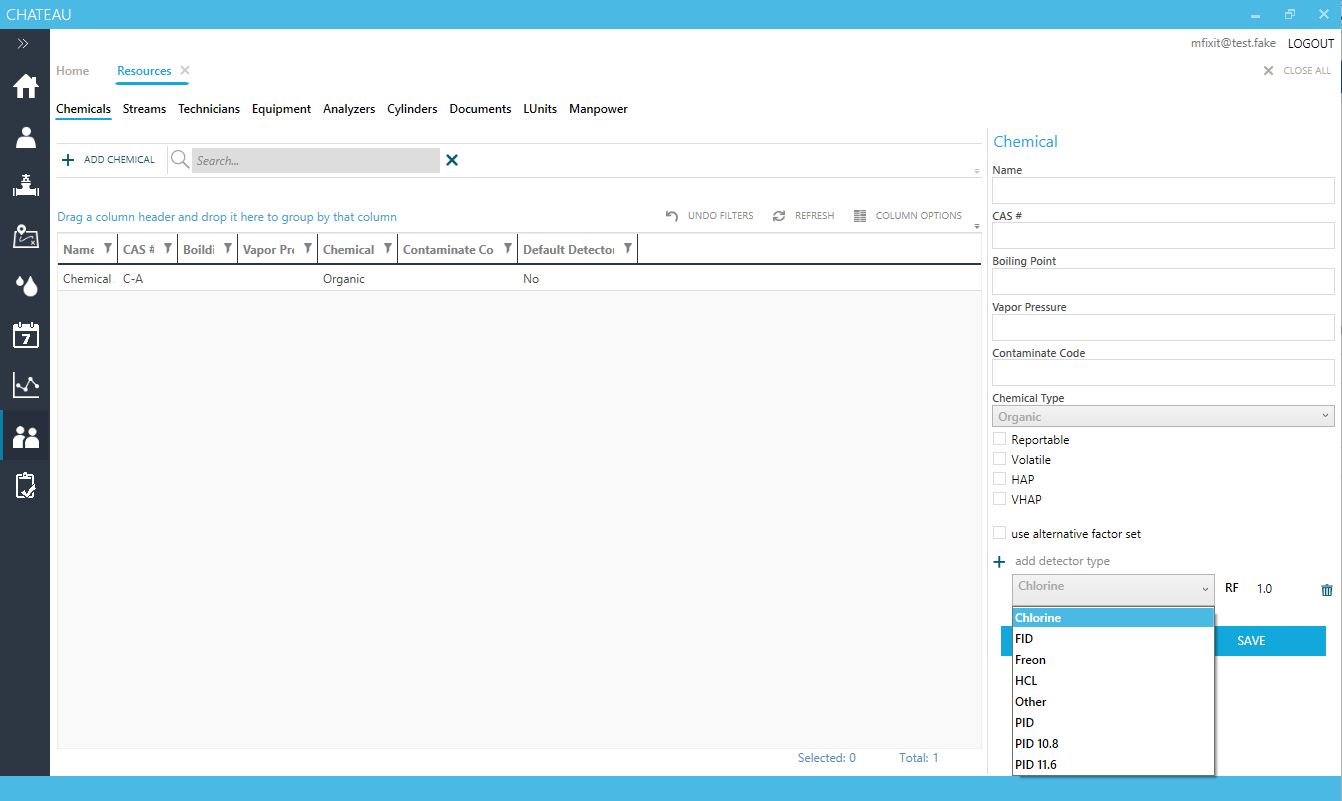

How to Prepare Chemical Information to Support Chateau Emission Calculations

1
2
3
4
5
1
Dropdown box allows you to select from:
Organic
Inorganic
Inert
2
You can set Yes/No states for these four properties for each Chemical.
3
Selecting this enables you to define an alternative factor set for components that have this chemical. This enables you to apply SOCMI factors to a subset of components when you are running Refinery factors on the rest of the components. You may also use this to apply Ethylene-specific factors.
4
If the Chemical Type is set to Organic or Inorganic, then you can specify which type of detector you want to use.
5
You can also specify the Response Factor for this chemical for the analyzer you will be using. In the Model you can also specify when the PPM should be adjusted by the RF for the stream.
